Troubleshooting

Problem: CUDA-aware MPI does not work on cluster

The MPI library we are using is the mpich of version 4.0.2, which was installed using spack, and is cuda-aware. Following is the description of the module.

Status

[ x ] Resolved

 - fixed by switching to the use of openmpi library instead

Description

For the details see the issue

Problem: No solutions after certain iteration count

Status

[ x ] Resolved

 - normal behavior to be expected

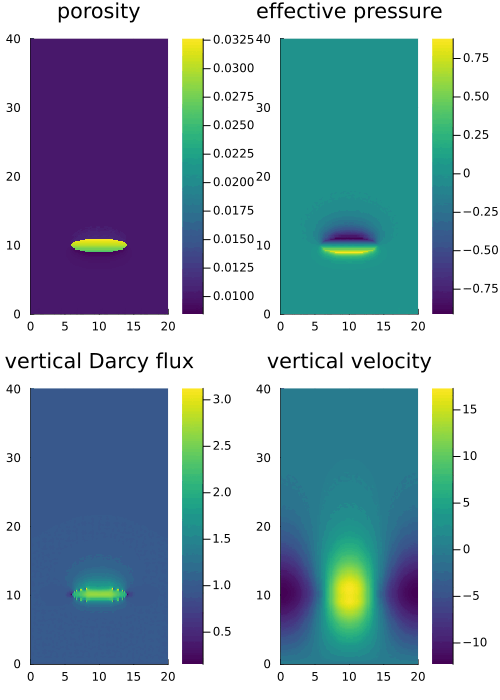

Using the 2D Hydro-mechanical solver for small R values, solution cannot be correctly plotted after a certain state has been reached. The solution can be correctly plotted until the 48th frame (included) as followed.

Description

R=0.5, t=0.2

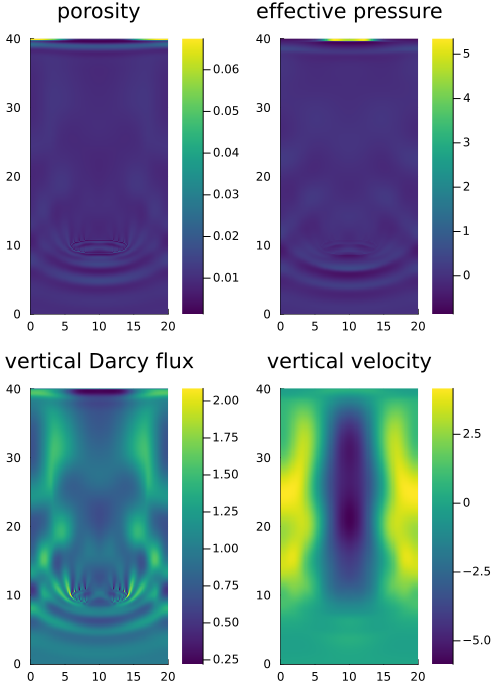

Where at the 48th frame the distribution of the parameters looks as followed

it = 1138, time = 3.307e-02 sec (@ T_eff = 24.00 GB/s)
it = 1139, time = 3.316e-02 sec (@ T_eff = 24.00 GB/s)
it = 1140, time = 3.313e-02 sec (@ T_eff = 24.00 GB/s)
GKS: Rectangle definition is invalid in routine SET_WINDOW
GKS: Rectangle definition is invalid in routine CELLARRAY
invalid range
GKS: Rectangle definition is invalid in routine SET_WINDOW
GKS: Rectangle definition is invalid in routine CELLARRAY

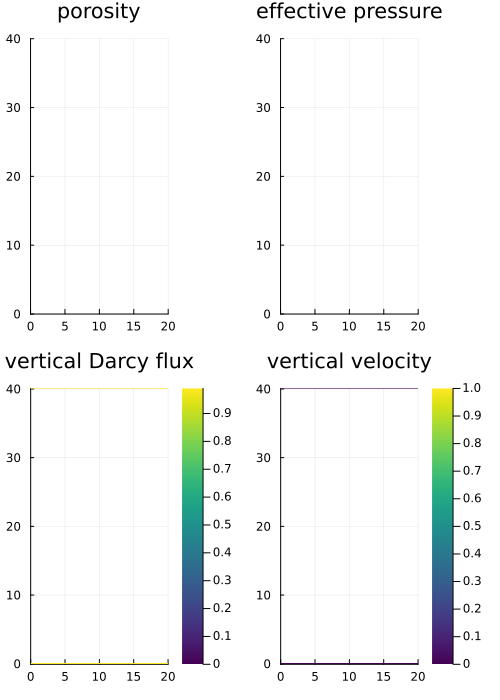

Then at the frames after the 48th frame it looks identical to the 49th frame.

Problem: Overhead brought by using MetaHydroMech.jl

Status

[x] Resolved - by calling only one compute!() kernel - use the const to fix the type instability problem of PTArray

Description

Using the same pattern as JustRelax.jl, we added the MetaHydroMech.jl to predefine the environment needed for the use of the ParallelStencil.jl. However this brought us a significant loss in the performance. Before it was around 24 GB/s after the code improvement.

it = 1, time = 1.653e+00 sec (@ T_eff = 9.00 GB/s)
it = 2, time = 1.519e-01 sec (@ T_eff = 16.00 GB/s)
it = 3, time = 3.360e-01 sec (@ T_eff = 12.00 GB/s)
it = 4, time = 2.038e-01 sec (@ T_eff = 16.00 GB/s)
it = 5, time = 2.077e-01 sec (@ T_eff = 16.00 GB/s)
it = 6, time = 2.661e-01 sec (@ T_eff = 15.00 GB/s)
it = 7, time = 2.399e-01 sec (@ T_eff = 14.00 GB/s)
it = 8, time = 2.561e-01 sec (@ T_eff = 16.00 GB/s)
it = 9, time = 2.614e-01 sec (@ T_eff = 16.00 GB/s)
it = 10, time = 2.914e-01 sec (@ T_eff = 14.00 GB/s)
it = 11, time = 2.558e-01 sec (@ T_eff = 16.00 GB/s)
it = 12, time = 2.582e-01 sec (@ T_eff = 16.00 GB/s)
it = 13, time = 2.649e-01 sec (@ T_eff = 15.00 GB/s)
it = 14, time = 2.845e-01 sec (@ T_eff = 14.00 GB/s)
it = 15, time = 2.564e-01 sec (@ T_eff = 16.00 GB/s)
Test Summary:                              | Pass  Total
Reference test: HydroMech2D_incompressible |    5      5
     Testing HydroMech tests passed
